Guides:Avatar Change Voice Position: Difference between revisions
jetdog8808 (talk | contribs) creation and partial completion |
jetdog8808 (talk | contribs) page finish up. |
||
| Line 6: | Line 6: | ||
== Setup == | == Setup == | ||
First you will need to modify your avatar (This is usually done in something like blender) to have two head bones. First one is will have no weight painting, this will be your humanoid configured head. The second will have the head mesh weight painted to it, and any extra bones for example ears will be on this one. This second head bone will be the visual head that people see.[[File:Voice position avatar setup.webp|thumb|Example of the two head bones|none]]Next is to setup the head bones in Unity. First go to the rig humanoid configuration menu. Here you will need to make sure your avatars humanoid head bone with no weight painting is configured as the head. | |||
First you will need to modify your avatar (This is usually done in something like blender) to have two head bones. First one is will have no weight painting, this will be your humanoid configured head. The second will have the head mesh weight painted to it, and any extra bones for example ears will be on this one. This second head bone will be the visual head that people see. | [[File:Voice position humanoid configuration.webp|none|thumb|Humanoid configuration]] | ||
For the visual head bone you will need to add a [https://creators.vrchat.com/avatars/avatar-dynamics/constraints/vrc-rotation-constraint/ rotation constraint] and a [https://creators.vrchat.com/avatars/avatar-dynamics/vrc-headchop/ head chop] component. The rotation constraint will have the humanoid head bone as its source, and the head chop will have its scale factor set to 0. | |||
Next is to setup the head bones in Unity. First go to the rig humanoid configuration menu. Here you will need to make sure your avatars humanoid head bone with no weight painting is configured as the head. | [[File:Voice position visual bone setup.webp|none|thumb|visual head setup]] | ||
With this setup the avatars head will move and stay out of your vision like normal. Now you can move the humanoid head bone with your voice wherever you want. To move it the best way is with a parent or position constraint. Could be moved somewhere else on your body, or even moved far away so that the voice range will no longer let people here you. | |||
[[File:Voice position head offset.webp|none|thumb|Example of moving the humanoid head bone]] | |||
[[Category:Guides]] | [[Category:Guides]] | ||
[[Category:Stubs]] | [[Category:Stubs]] | ||
Revision as of 01:54, 30 April 2025
[Reason: You can contribute by expanding and proofreading this article, in accordance with the Manual of Style.]
VRChat currently does not have a supported way to change where your voice on your avatar comes from. This is a unintended feature, and may break in the future. This trick also does not support generic avatars.
Normally VRChat has the players voice follow the avatars humanoid configured head bone. So with constraints you can move your head bone, and your voice will move along with it. If you don't want your avatars head detached or stretched it will require a little more setup.
Setup
First you will need to modify your avatar (This is usually done in something like blender) to have two head bones. First one is will have no weight painting, this will be your humanoid configured head. The second will have the head mesh weight painted to it, and any extra bones for example ears will be on this one. This second head bone will be the visual head that people see.

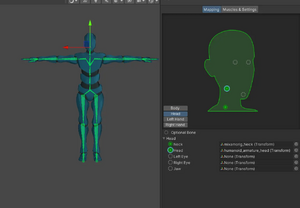

Next is to setup the head bones in Unity. First go to the rig humanoid configuration menu. Here you will need to make sure your avatars humanoid head bone with no weight painting is configured as the head.

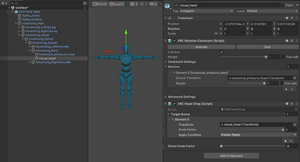

For the visual head bone you will need to add a rotation constraint and a head chop component. The rotation constraint will have the humanoid head bone as its source, and the head chop will have its scale factor set to 0.

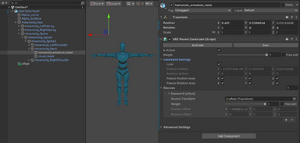

With this setup the avatars head will move and stay out of your vision like normal. Now you can move the humanoid head bone with your voice wherever you want. To move it the best way is with a parent or position constraint. Could be moved somewhere else on your body, or even moved far away so that the voice range will no longer let people here you.
